Resit notes for Computation II - 5EIB0
- Topics: Caches and Memory Hierarchy
Cache
Spatial + Temporal locality

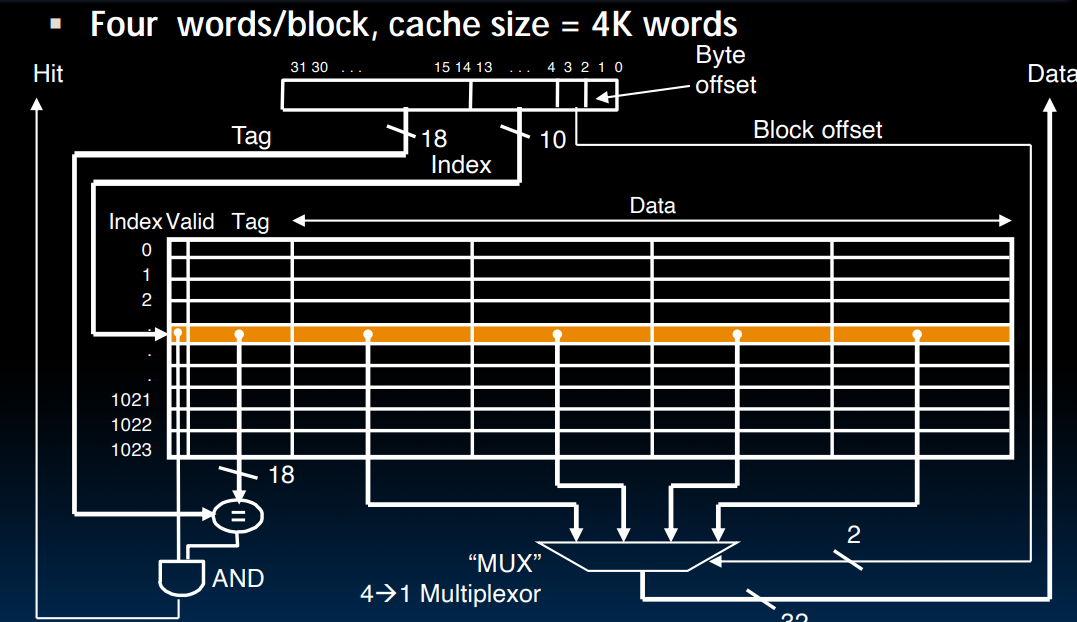

Direct Mapped Cache:
Lowest addressable unit is a byte (8 bit ??) nibble 4 bit
Byte offset: 2 bit (for 32-bit arch)
Cache index = MM index % n0 of cache max index
Average memory access time (AMAT):
Write hit:
- Write through: update both cache and memory
- Write-back:
- update in cache only → memory can be “stale”
- add dirty bit to → check if data is updated to memory → update when cache block is flushed
Cache misses: compulsory → capacity → conflict
- D-cache (data): only in load & store instructions
- I-cache (instruction)

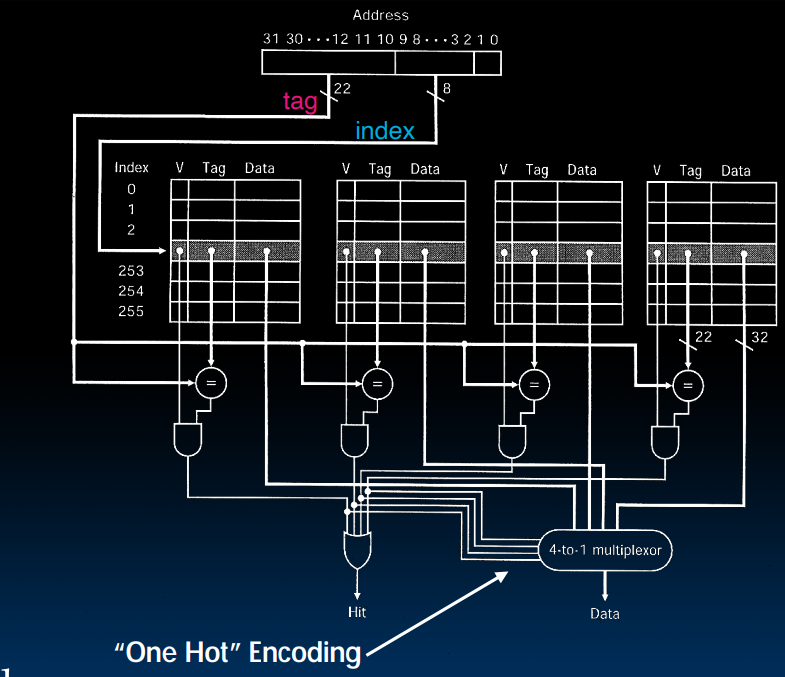

N-way Associative Cache
Direct-mapped with N block sets → can be mapped to any block within sets
Set index = MM index % n0 of sets
N = n0 of cache blocks → fully associative
Fix address aliasing
Cache block size = 2^(n0 of byte offset bits) bytes
N0 of cache entries = 2^(n0 of index bits)
Cache size = (1 valid bit (+ 1 dirty bit for write-back) + tag + cache block size) * n0 of cache entries
T_spdup = (CPI_ideal + factor * CPI_stall) * T_clk / factor
